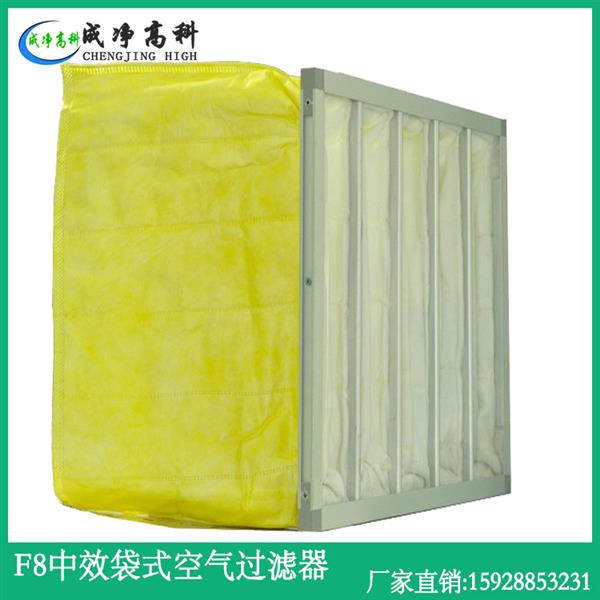

中效袋式空氣過濾器
遼寧沈陽初效空氣過濾器|遼寧沈陽中效空氣過濾器|遼寧沈陽高效空氣過濾器
Air filter bag in effect
特點Features
●可重復使用多次
●阻力小、風量大
●廣泛運用于空調系統的中級過濾
●Adopts reusable times
●Responding to small resistance, air
●Widely used in air conditioning systemof intermediate filtration
構成材料及運行條件
Materials and operating conditions
●框材：鋁合金或鍍鋅板外框
●External frane：Aluminum alloy steel or frame
●濾料材質：新型復合無紡布
●Filter material: new composite nonwoven fabric
●濾料顏色：F5(白色)45%（淺黃色）、F6(綠色)65%（桔紅色）、
F7(粉紅色)85%（紫色）、F8(淺黃色)95%（深黃色）
●Liao color: The F5 (white) 45% (yellow), F6 (green) 65% (orange),
F7 (pink) 85% (purple), F8 (yellow) 95% (deep yellow)
●密封條：醋酸乙酯
●Gasket：EVA
●使用溫度、濕度：80℃、80%以內
●Use the highest temperature, humidity：80℃、80%
型號尺寸及其他參數
Standard specification
型號 model | 外形尺寸 Outside Dimensions (mm) | 額定風量 Rated air flow (m3/h) | 初阻力 Initial resistance(Pa) | 效率（級別） Efficiency (class) | 濾料顏色 Liao color | 袋數 pockets |
CJ-M1-C1 | 495×295×500mm 20″×12″×20″ | 1000m3/h | 50Pa F5 55Pa F6 60Pa F7 65Pa F8 | 40-50% F5 60-70% F6 75-85% F7 85-95% F8 （比色法） colorimetric | 白色F5 White 綠色F6 Green 粉紅F7 pink 淺黃F8 yellow | 5 |
CJ-M1-C2 | 495×495×500mm 20″×20″×20″ | 1800m3/h | 5 | |||
CJ-M1-C3 | 595×295×500mm 24″×12″×20″ | 1300m3/h | 6 | |||
CJ-M1-** | 595×495×500mm 24″×20″×20″ | 2200m3/h | 6 | |||
CJ-M1-C5 | 595×595×500mm 24″×24″×20″ | 2600m3/h | 8 | |||
CJ-M1-C6 | 495×295×600mm 20″×12″×24″ | 1200m3/h | 5 | |||
CJ-M1-C7 | 495×495×600mm 20″×20″×24″ | 2200m3/h | 5 | |||
CJ-M1-C8 | 595×295×600mm 24″×12″×24″ | 1600m3/h | 6 | |||
CJ-M1-C9 | 595×495×600mm 24″×20″×24″ | 2700m3/h | 6 | |||
CJ-M1-C10 | 595×595×600mm 24″×24″×24″ | 3200m3/h | 8 |
*可要據用戶要求定制不同規格型號的過濾器
According to user requirements to customize different specifications and types of filters
